Part Number: BN15-0179-C06-Z
BN15-0179-C06-Z
Details & Specifications

DescriptionBNC HDTV Crimp Plug
To Fit Cable TypesRG179
Fixing MethodCrimp
BodyBrass, Nickel Plated
Coupling NutBrass, Nickel Plated
DielectricPTFE
FerruleBrass, Nickel Plated
PinBrass, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding1500 Volts RMS Maximum
Durability500 mating cycles
Impedance75 ohms
Max. Frequency3 GHz
Temperature Range-65 to +165 degrees C
Working Voltage500 Volts RMS Maximum
Additional InformationSuitable for HDTV and other high frequency 75 ohm applications. Return Loss >20dB @ 3GHz.

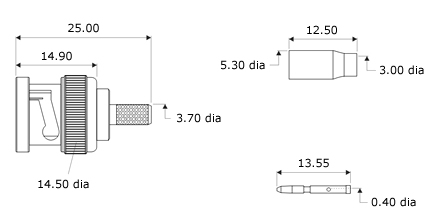

Technical Illustration
BN15-0179-C06-Z
Assembly Instructions
Strip DimensionsA=8mm, B=3mm, C=4mm


1) Slide the ferrule onto the cable and strip the cable to the dimensions as shown, taking care not to nick the centre conductor or braid.
2) Crimp the pin onto the centre core and slide the pin into the body until it captivates, ensuring that the cable braid is on the outside of the connector mandril.
3) Slide the ferrule forward and crimp.
Crimp Hex. Sizes4.52mm Hex., 1.07mm
