Part Number: MA02-0083-R01-8
MA02-0083-R01-8
This product is only available terminated on coaxial cable.
Details & Specifications

DescriptionSMA Direct Solder Bulkhead Jack
To Fit Cable TypesUMM-113_UFL
Fixing MethodSolder
BodyBrass, Gold Plated
ContactBeryllium Copper, Gold Plated
DielectricPTFE
FerruleBrass, Gold Plated
LocknutBrass, Gold Plated
WasherSS41, Gold Plated
Cable RetentionEqual to breaking strain of cable
Dielectric Withstanding750 Volts RMS Maximum
Durability500 mating cycles
Impedance50 ohms
Max. Frequency6 GHz
Temperature Range-65 to +165 degrees C
Working Voltage335 Volts RMS Maxim
Additional InformationAvailable pre-terminated on UMM (UFL) cable assemblies only.

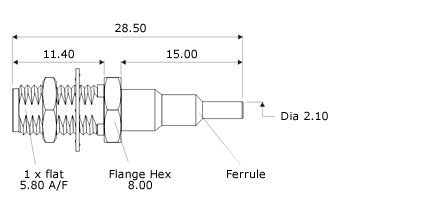

Technical Illustration
MA02-0083-R01-8
Panel Fixing Information
Cut-out DimensionsA=6.10mm, B=6.50mm
