10 GHz

PRO-10-001

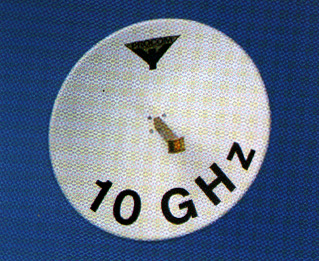

PROCOM 10GHz Parabolic Antenna 27dBd, diam.= 48cm, F/D=0,4.

Completely assembled parabolic dish antenna, white coated, with band designation, waveguide, flange and feed horn. SWR at f0: < 1.25 . Opening angle : 6.0°

PRO-10-002

PROCOM 10 GHz Parabolic dish Diam. = 48cm, F/D = 0,4.

White coated but without text and without central hole for waveguide feedthrough.

PRO-10-003

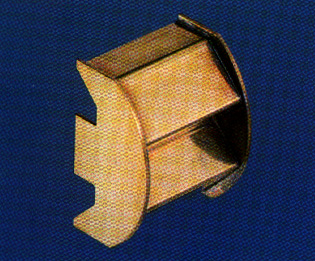

PROCOM 10 GHz Feed Horn, made of brass

PRO-10-004

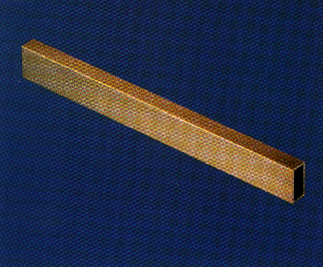

PROCOM 10 GHz Waveguide Section, WR90, made of brass, L = 227 mm.

PRO-10-005

PROCOM 10 GHz Waveguide, WR 90, made of brass. Cut to customer-specified length (max 1 m).

PRO-10-006

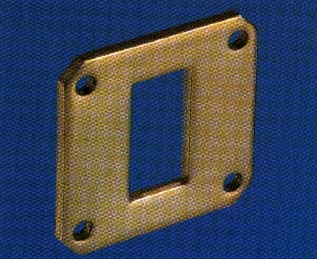

PROCOM 10 GHz Flange for WR 90, made of brass.

PRO-10-007

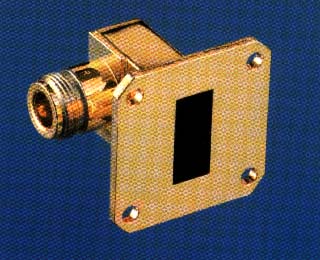

PROCOM 10 GHz Coaxial/waveguide Transition . ( N-female connector). Made of gilt brass. SWR at f0 : < 1,3.

PRO-10-008

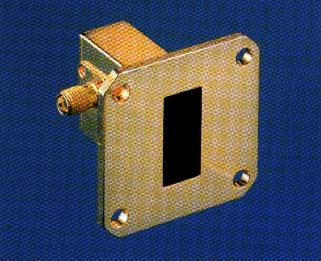

PROCOM 10 GHz Coaxial/ Waveguide Transition . (SMA-female connector). Made of gilt brass SWR at f0 : < 1,5.

You want to know the price with carriage or more details please write us
