24 GHz
PRO-24-001
PROCOM 24 GHz parabolic Antenna 36dBd, diam.= 48cm, F/D=0,4.
Completely assembled parabolic dish antenna, white coated, with band designation, waveguide, flange and feed horn. SWR at f0 : < 1,25. Angle d'ouverture : 2,5°
PRO-24-002
PROCOM 24GHz Parabolic Dish. Diam. = 48cm, F/D = 0,4.
White coated but without text and without central hole for waveguide feddthrough.

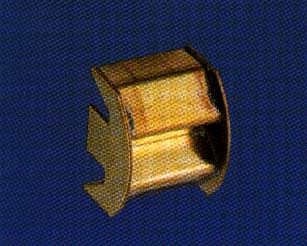

PRO-24-003
PROCOM 24GHz Feed Horn, made of brass

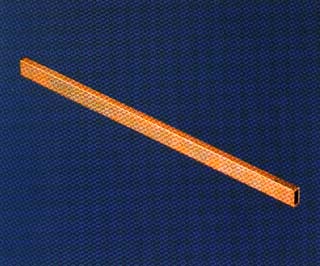

PRO-24-004
PROCOM 24GHz Waveguide Section, WR 42, made of brass, L = 240 mm.
PRO-24-005
PROCOM 24GHz Waveguide Section, WR 42, made of brass, cut to customers-specified length (max 1 m).
PRO-24-006
PROCOM 24GHz Flange for WR 42, made of brass.

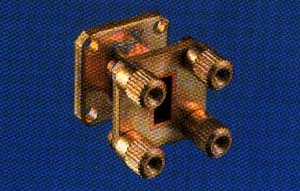

PRO-24-007
PROCOM 24GHz Quick-coupling Flange, made of brass. For fast fitting of dish to Transverter. (with 4 longnuts).

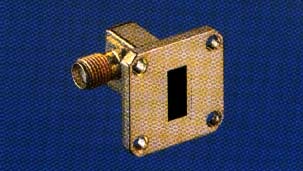

PRO-24-008
PROCOM 24GHz Coaxial/Waveguide Transition (SMA-female connector). Made of gilt brass. SWR at f0 : < 1,3

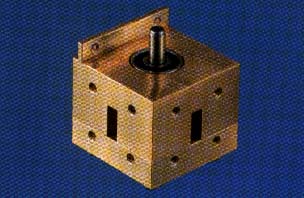

PRO-24-009
Procom 24 GHz Transfer Switch, 4 port, with ball bearings, made of brass.
