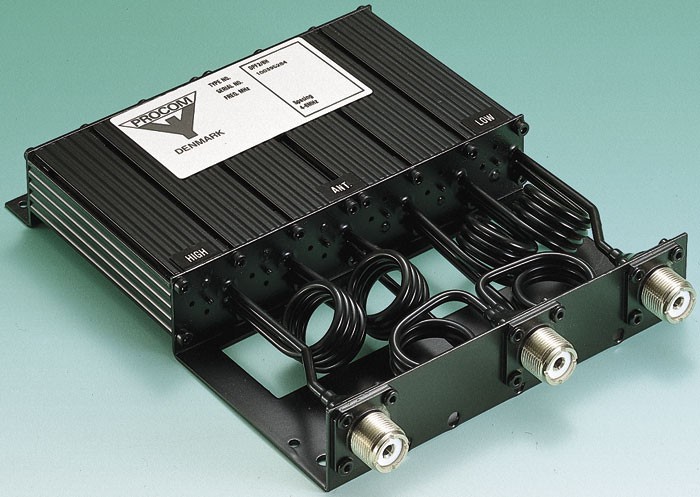

DPF 2/6
6 Cavity Duplexer for the 160 MHz
TX/RX FREQUENCY
|
138-156 MHz
152-175 MHz |
Max. Input power
|
50 watts
|
Insertion
Loss TX-ANT and ANT-RX |
Single chanel <1,2dB |
TX Noise suppression
|
Single chanel
>80dB
Multi-chanel >60dB |
Duplex spacing |
4-10 MHz adjustable
|
Impedance
|
Nom. 50 Ohms
|
SWR
|
<1,5
|
Temp. Range
|
-30°c
/ +60°c
|
Freq. Stability
|
Approx. 5ppm/°c
|
Connectors
|
UHF - female
|
Dimensions (L
x W x H)
|
211 x 154
x 33mm
|
Weight
|
Approx. 940
g
|
