6 cavity mobile or base station
Duplexeur for the 112-136 MHz Band

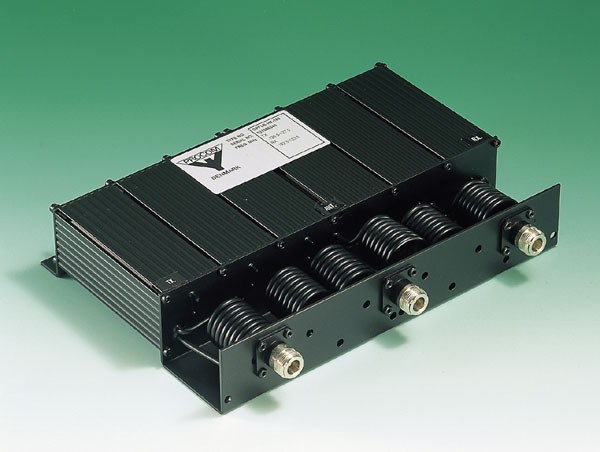

DPF 3/6-HX-150
6 cavity mobile or base station
Duplexeur for the 112-136 MHz Band
|
TX/RX FREQUENCY
|
112- 136 MHz
|
|
Max. Input power
|
100 Watts
at 1 dB insertion loss
|
|
Min. Duplex
Spacing
|
1 MHz
|
|
Typical Insertion
Loss
|
@ 1.3 MHz sapcing : 1,5dB |
|
TX Noise suppression
|
@ 1.3 MHz
sapcing : 65 dB
@ 2.0 MHz spacing : 80 dB @ 3.0 MHz spacing : 100 dB |
|
Impedance
|
Nom. 50 Ohms
|
|
SWR
|
<1,5
|
|
Temp. Range
|
-30°c
/ +60°c
|
|
Freq. Stability
|
Approx. 8ppm/°c
|
|
Connectors
|
N- female
|
|
Dimensions (L
x W x H)
|
185 x 250
x 50mm
|
|
Weight
|
Approx. 2,1
kg
|
