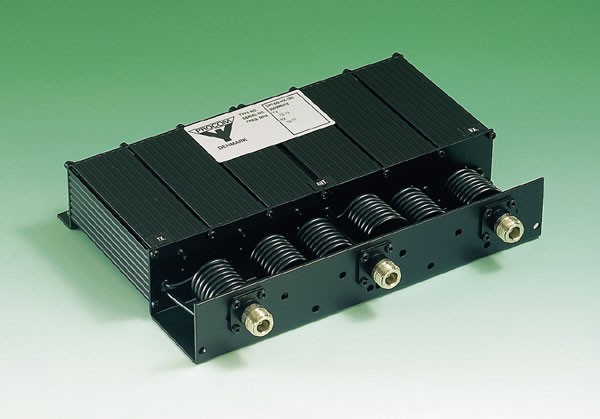

6 cavity mobile or Base Station
Duplexer for the 68-88 MHz
DPF 4/6
HX 150
6 cavity mobile or Base Station
Duplexer for the 68-88 MHz
| TX/RX FREQUENCY |
68-88 MHz
|
| Max. Input power |
100 Watts
at 1 dB insertion loss
|
| Min. Duplex Spacing |
800 KHz
|
| Typical Insertion Loss |
@ 1.0 MHz
spacing : 1,5dB
@ 1.5 MHz spacing : 1,2dB @ 3.0 MHz spacing : 1.0dB |
| TX Noise suppression |
@ 1.0 MHz
spacing : 70 dB
@ 1.5 MHz spacing : 80 dB @ 3.0 MHz spacing : 100 dB |
| Impedance |
Nom. 50 Ohms
|
| SWR |
<1,5
|
| Temp. Range |
-30°c
/ +60°c
|
| Freq. Stability |
Approx. 8ppm/°c
|
| Connectors |
N- female
|
| Dimensions (L x W x H) |
210 x 250
x 50mm
|
| Weight |
Approx. 2,5
kg
|
