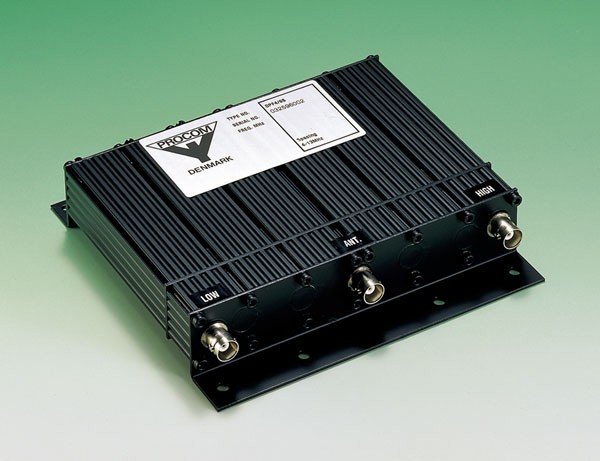

6 Resonator Duplexer for the 80 MHz
DPF 4/6
S
6 Resonator Duplexer for the 80 MHz
|
TX/RX FREQUENCY
|
66-88 MHz
|
|
Max. Input power
|
50 watts
|
| Insertion
Loss TX-ANT and ANT-RX |
Single chanel <1,2dB |
|
TX Noise suppression
|
Single chanel
>80dB
Multi-chanel >40dB |
| Duplex spacing |
4-13 MHz adjustable
|
|
Impedance
|
Nom. 50 Ohms
|
|
SWR
|
<1,4
|
|
Temp. Range
|
-30°c
/ +60°c
|
|
Freq. Stability
|
Approx. 9ppm/°c
|
|
Connectors
|
BNC- female
|
|
Dimensions (L
x W x H)
|
170 x 154
x 33mm
|
|
Weight
|
Approx. 1,05
kg
|
