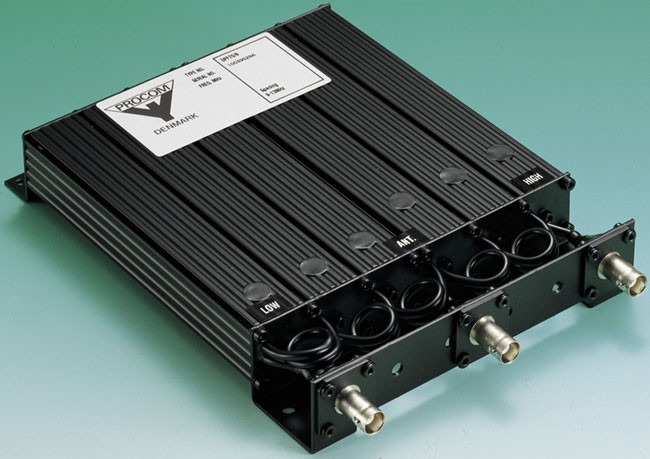

6 Cavity Duplexer for the 450 MHz
DPF 70/6
6 Cavity Duplexer for the 450 MHz
|
TX/RX FREQUENCY
|
406-470 MHz
|
|
Max. Input power
|
50 watts
|
| Insertion
Loss TX-ANT and ANT-RX |
Single chanel <1,2dB |
|
TX Noise suppression
|
Single chanel >85dB |
| Duplex spacing |
DPF70/6-5/7
= 5-7 MHz
DPF70-6-7/9 = 7-9 MHz DPF-70/6-9/13 = 9-13 MHz DPF-70/6-13/16 = 13-16 MHz |
|
Impedance
|
Nom. 50 Ohms
|
|
SWR
|
<1,5
|
|
Temp. Range
|
-30°c
/ +60°c
|
|
Freq. Stability
|
Approx. 4,5ppm/°c
|
|
Connectors
|
BNC - female
|
|
Dimensions (L
x W x H)
|
226 x 154
x 33mm
|
|
Weight
|
Approx. 990
g
|
