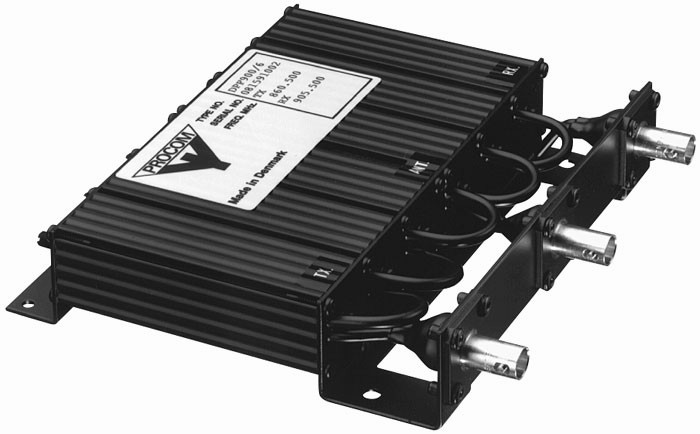

DPF 900/6
6 Cavity Duplexer for the 900 MHz



TX/RX FREQUENCY
820-960 MHz
Max. Input power
50 watts
Insertion Loss
TX-ANT and ANT-RX

Single chanel <1,0dB
Multi-chanel <1,0dB

TX Noise suppression

Single chanel >85dB
Multi-chanel >65
dB

Duplex spacing
45 MHz
Impedance
Nom. 50 Ohms
SWR
<1,5
Temp. Range
-30°c / +60°c
Freq. Stability
Approx. 4,5ppm/°c
Connectors
BNC - female
Dimensions (L x W x H)
158 x 154 x 33mm
Weight
Approx. 850 g
