AAC 1
| Antenna type | Broadband active antenna for communication purposes |
| Frequency | 10 KHz- 30 MHz |
| Impedance | Nom. 50 ohms |
| Polarization | Vertical |
| Horizontal cover. | Omni-directional |
| Antenna Factor | Typ. 0.15mV outpout in 50 ohms by a field strength of 1mV/m |
| 1dB compression point | Typ. occuring at a field strength of 7V/m from an interfering signal |
| Cross modulation | 20dB cross modulation attenuation typically occuring at a field strength
of 5V/m from an interfering source |
| Intermodulation | IP2 > 55dBm
IP3 > 25dBm |
| Max. Allowed field strength | 90 V/m |
| Amplifier protection | Spark gap, surge arrester and opposed protective diodes |
| Operating voltage | 24 V DC |
| Power consumption | Approx. 10 watts |
| Temp. Range | -30°c > +60°c |
| Connector | N-Female |
| Total Height | Approx. 0.92m |
| Weight | Approx. 1.0 Kg |

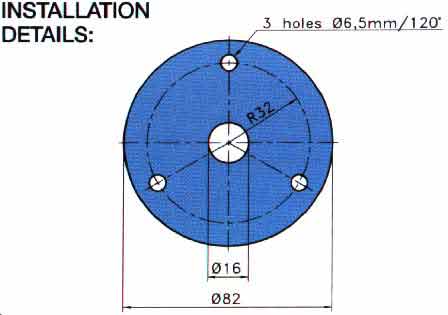

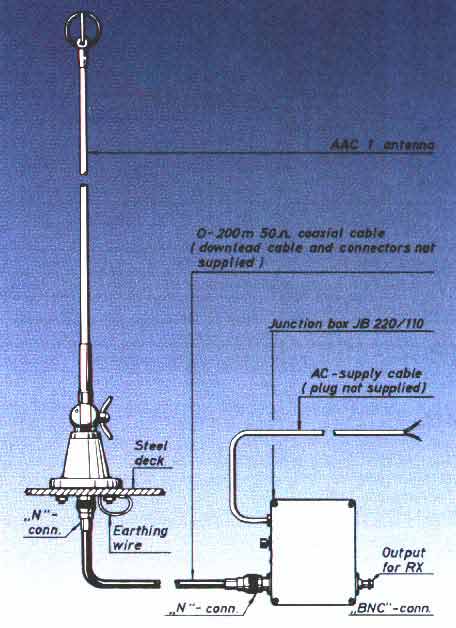

| Mounting | On flat surfaces such as deck or roof or on 30-45mm mast
tube using accessory item "SM-MA" (not included) |
