BCL 1 - KA
| Model | BCL 1-KA |
| Antenna type | Broadband active receiving antenna |
| Frequency | 10 KHz - 30 Mhz |
| Impedance | Nom. 50 ohms |
| Polarization | Vertical |
| Horis. coverage | Omni-directional |
| Supply Voltage | 9-14 V DC |
| Current Consump. | Approx. 4.5 mA |
| Max. Intensity of received field | Distortion due to amplifier voltage limitation occurs at field intensities exceeding 5V/m |
| Aerial protection | Protective diodes |
| Temp Range | -10°C -> +50°c |
| Connector type | UHF (for PL-259) |
| Total Height | Appox. 1.01m. |
| Weight | Approx. 1.0 kg |

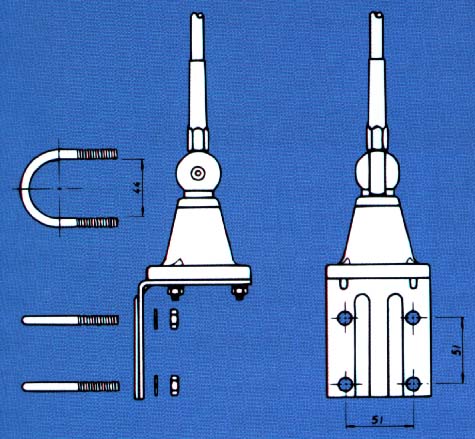

| Mounting | On 30-45mm dia. mast tube or on a flat surface |
