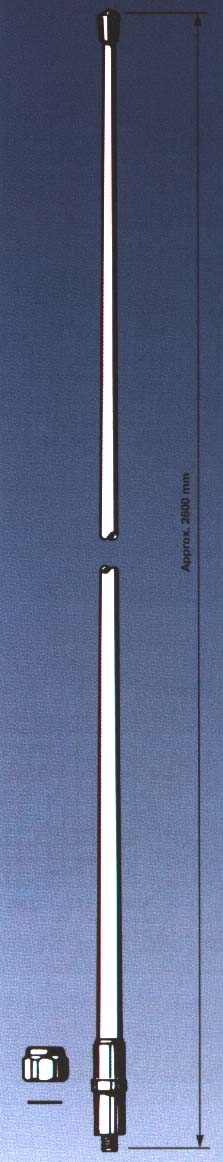

CXL 2-3
| Antenna type | Omnidirectional, coaxial colinear |
| Frequency | 156 to 162 MHz |
| Impedance | Nom. 50 ohms |
| Polarization | Vertical |
| Gain | 3 dBd |
| BandWidth | 6 MHz |

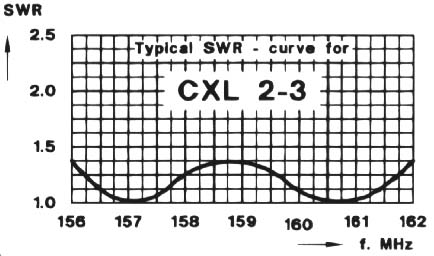

| SWR | < 1.5 |
| Max Power | 150 Watts |
| Connector | UHF-female |
| Wind Surface | 0.0527 m² |
| Total Height | Approx. 2.60 m |
| Weight | Approx. 1 Kg |
| Mounting | On 1" (15/16"-11) threaded mast tube or on mounting brackets
FLG, SMR 1, SMR 2 or SM 2-1 (see accessories) |
