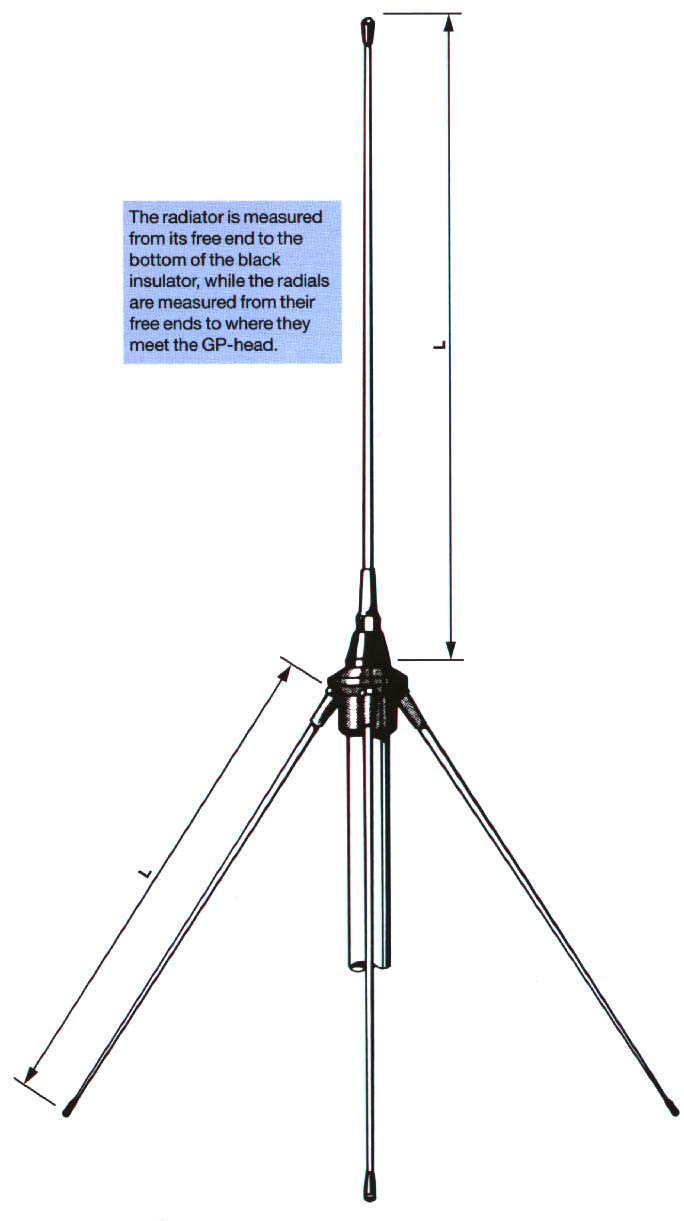

GP 160
| Antenna type | 1/4 ground plane |
| Frequency | Tunable by cutting within : 145....175 MHz |
| Impedance | Nom. 50 Ohms |
| Radiation | Omnidirectional |
| Polarisation | Vertical |
| Gain | 0 dBd (2.15 dBi) |
| Bandwidth | 12 MHz at 160 MHz (SWR < 2.0) |
| SWR | < 1.2 at f. res. |
| Max. power | 1 kW |
| Connector | UHF-female (for PL-259) |
| Wind surface | 0.0184 m² |
| Wind load | 25 N (at 150 km/h) |
| Colour | White / Bright chrome |
| Materials | Elements : Glassfiber
Metal parts : Bright chromed brass |
| Total Height | Approx. 0.87m |
| Weight | Approx. 1.0 kg |
| Mounting | 38 mm dia. mast tube |
