HF 5000

Antenna type Self-supporting whip antenna
Frequency 1.4 to 30 MHz
Static Capacity Approx. 60 pf
Insulat. resistance Approx. 108 ohms
Mechanical length 5 m
Eff. electr. length 4.40 m
Connector open feeder see drawing
Wind surface 0.082 m²
Wind load 106 N (at 150km/h)
Max. wind speed 200 km/h
Weight 2.7 kg clamps inclusive
Mounting On 35 to 65 mm mast tube

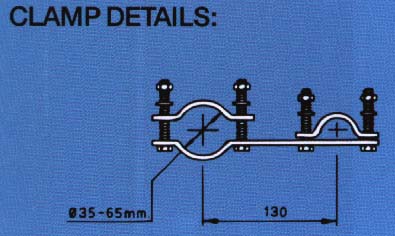

clamp detailsAntenna HF-5000Contact us :
