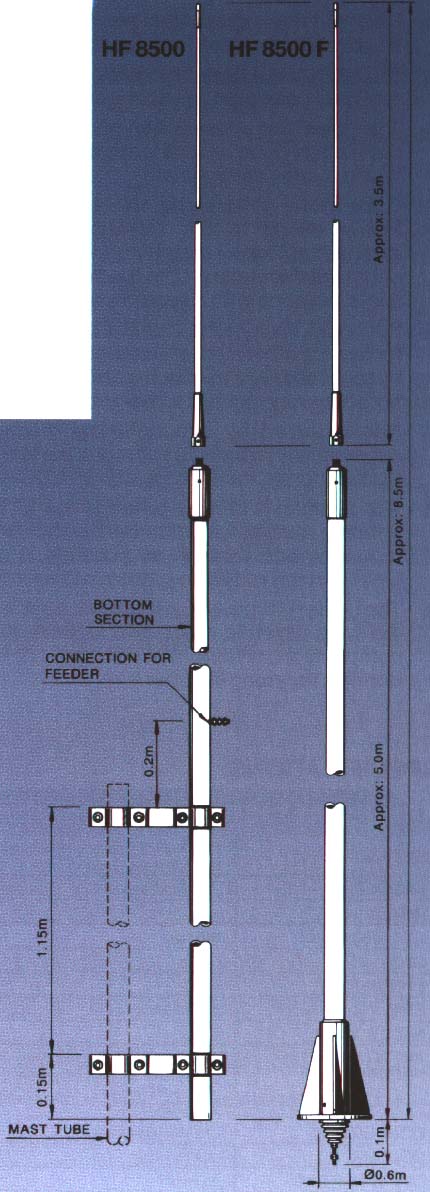

HF 8500 & HF 8500 F
| Model |
HF 8500 |
HF 8500 F |
| Antenna type | Self supporting whip antenna for mast mounting | Self supporting whip antenna for mast mounting |
| Frequency range |
1.4 MHz to 30 MHz |
1.4 MHz to 30 MHz |
| Radiation |
Omnidirectional, vertically polarized |
Omnidirectional, vertically polarized |
| Conductive length |
7.0 m |
8.5 m |
| Static capacitance |
Approx. 105 pf |
Approx. 115 pf |
| Insulation resistance |
> 10 M ohms |
> 10 M ohms |
| Flashover Voltage |
> 20 kV |
> 20 kV |
| Max. Outpout power |
500W (CW) (2kW PEP) |
500W (CW) (2kW PEP) |
| Connection |
M10 thread stud |
M 8 thread stud |
| Wind surface |
0.28 m² |
0.30 m² |
| Wind load |
311 N @ 150 km/h |
333 N @ 150 km/h |
| Max wind speed |
200 km/h |
200 km/h |
| Materials | Whip : Glassfiber - Fittings : chromed bronze -
Clamps : Hot-galvanized steel |
Whip : Glassfiber - Fittings : chromed bronze -
Clamps : Hot-galvanized steel |
| Colour |
Marine white |
Marine white |
| Weight |
Approx. 11 kg (incl. clamps) |
Approx. 19 kg |
| Total Height |
Approx. 8.5 m |
Approx. 8.53 m (over deck) |
| Mounting | On 50-65 mm mast tube | Directly on deck or on a pedestal (to be provided
by the shipyard) by means of 4 pcs. M14x50 stainless steel bolts (enclosed) |
The HF-8500 and HF-8500 F must be tuned to the operating frequency by means of a tuning unit.
