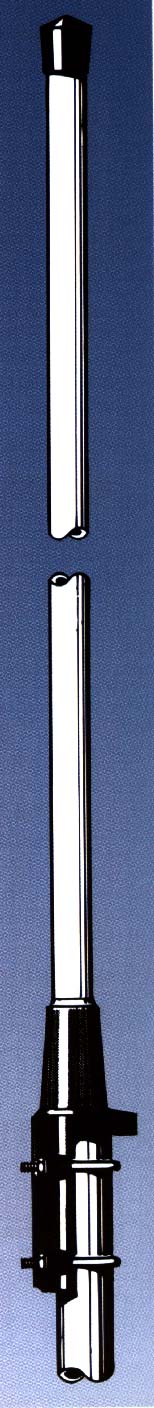

NTA 2 LW
Antenna type | Active, selective receiving antenna |
Frequency | 518 KHz |
Impedance | Nom. 50 ohms |
Polarization | Vertical |
Horizontal cover. | Omnidirectional |
Antenna Factor | Typ. 0.08mV outpout in 50 ohms at a field strength of 1mV/m |
Selectivity | 3dB bandwidth : 10 KHz
10dB bandwidth : 30 KHz |
Attenuation | 12dB at 500 KHz |
Drift (-30°C > +60°C) | +/- 1 KHz |
Supply voltage | 9-14 V DC |
Power consumption | Approx. 50 mW |
Temp. Range | -30°c > +60°c |
Connector | UHF (for PL-259) |
Wind Surface | 0.020 m² |
Wind Load | 23N (at 150 Km/h) |
Colour | Marine white |
Total Height | Approx. 0.95m |
Weight | Approx. 1.0 Kg |
Mounting | On 16 to 54 mm dia. mast tube |
Active antenna : Several advantage can be gained by using an active antenna instead of an ordinary wire antenna. Especially, the small physical size makes the active antenna much easier to install, and considering that the active antenna yields signal to noise ratios and signal strenghts normally only obtainable with much longer wire antennas, an active antenna makes a good choice, especially also with respect to economy.
