VHF AIR BAND TRANSCEIVERS

VHF AIR BAND TRANSCEIVERS

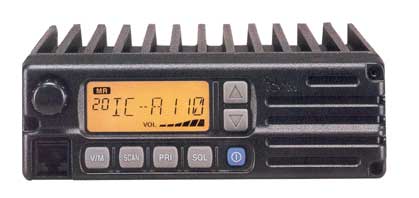

IC-A110 IC-A110EURO





Rugged and reliable for serious ground crew communications
Setting a new standard for ground based communicatjons, the IC-A110/EURO provide durability and reliability in demanding operational environments.
Capable of being installed in any vehicle IC-A110/EURO are adaptable to vehicles working on a 12 V, as well as a 24 V power source.
Front mounted loud speaker A loud speaker mounted in the front of the transceiver is free of any obstacles blocking audio reproduction.
And 10 W, of powerful output power is available for the external speaker.
Dial selection With a simple rotation of the dial, frequently used memory channels, or desired frequency selection can be made.
Memory channel name capability UP to 7-character memory names can be assigned for each channel.
Allows simple and quick channel recognition and selection. Side tone function Operator's transmitted messages and calls are audio modulated and can be heard by standard airband headsets*, even in the most demanding operating airport conditions.
* Option OPC-871 is necessary when using standard type headset.
Convenient on hook scan functions
Hanging the microphone on the mic. hanger activates the auto scan function .
When released, the transceiver will return to the last used, or priority channel, depending on the selection.
Usable in extreme cold The adopted LCD guaranteed usable in temperatures from -30°C to +70°C (-22°F to +158°F). Normal performance, as well as display indications, are guaranteed even in extremely cold areas.

ADDITIONAL FEATURES
Additional to the predominantly used 25 kHz channel spacing, an extra version complying to new regulations is available for 8.33 kHz channel spacing Equipped EEPROM system provides maintenance free memory backup capability, without the use of a separate backup battery
Various scan functions, such as VFO and priority scans are available
Limited number of keys for simple manipulation, but providing advanced multi-functions
A total of 20 memory channels are available Ideal compact size of 150(W) × 50(H) × 180(D) mm* to mount in various types of vehicles * 5 29/32(W) × 1 31/32(H) × 7 3/32(D) in
36 W (pep) of powerful output
Excellent durability to cope with even the toughest workplace
Memory channel only operation possible via PC programming
Hand microphone supplied

SPECIFICATIONS GENERAL
Frequency range : 118.000 - 136.975 MHz
Channel spacing (according to version) : 8.33/25 kHz auto selection or 25 kHz only Mode : 6K00A3E (AM)
No. of memory Ch. : 20 Antenna connector : SO-239 (50)
Power supply requirement (negative ground) : 13.75 V DC or 27.5 V DC
Current drain (at 13.75 V DC) : Transmitting Receiving 5.0 A max. 4.0 A (at AF max.) 0.5 A (at stand-by)
Operating temperature range : IC-A110 IC-A110EURO -30°C to +60°C ; -22°F to +140°F -20°C to +55°C
Frequency stability : IC-A110 IC-A110EURO ±5 ppm (-30°C to +60°C) ±1 ppm (0°C to +40°C)
Dimensions (projectlons not incl.) : 150(W) × 50(H) × 180(D) mm 5 29/32(W) × 1 3/32(H) × 7 3/32(D) it
Weight (approx.) : 1.5 kg; 3 lb 5 oz
TRANSMITTER
Output power : 36 W typ. pep (9 W typ. for CW)
Modulation limiting : 70 - 100% (IC-A110)
Modulation compression* : Linear 85% Max. 95%
AF harmonic distortion : Less than 10% (at max. mod.)
Hum and Noise ratio : More than 40 dB
Spurious emissions :
IC-A110 IC-A110EURO 9 kHz to 1 GHz 1 - 4 GHz Less than -16 dBm Less than -46 dBm (Less than -36 dBm for harmonics in 30 MHz to 1 GHz range) Less than -40 dBm (Less than -30 dBm for harmonics)
Adjacent Ch. power* : Less than 60 dB (25 kHz) Less than 50 dB (8.33 kHz)
Microphone connector : 8-pin modulator (600)
RECEIVER
Receiving system : Double conversion superheterodyne Intermediate freq. : 1st 38.85 MHz 2nd 450 kHz
Sensitivity (pd) : IC-A110 IC-A110EURO Less than 1 µV (at 6 dB S/N) Less than +5 dBµV(at 12 dB SINAD)
Squelch sensitivity (pd; at threshold) :
IC-A110 IC-A110EURO Less than 0.3 µV Less than -6 dBµV

OPTION OPC-871 HEADSET ADAPTER For connection with standard airband headset.
