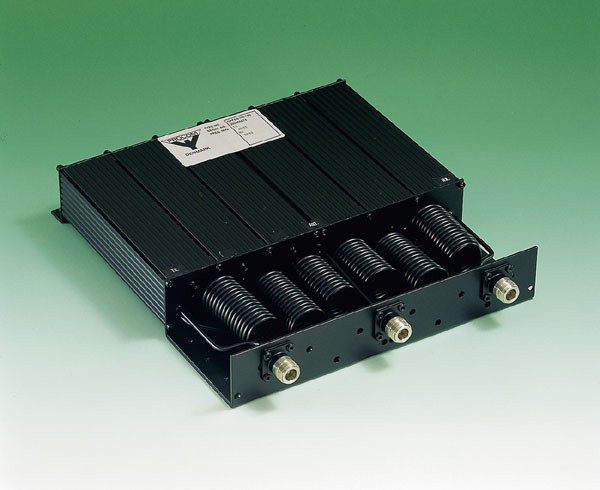

DPF 8/6-HX-150
6 cavity mobile or base station
Duplexeur for the 30-45 MHz Band
| TX/RX FREQUENCY |
30-45 MHz
|
| Max. Input power |
100 Watts
at 1 dB insertion loss
|
| Min. Duplex Spacing |
600 KHz
|

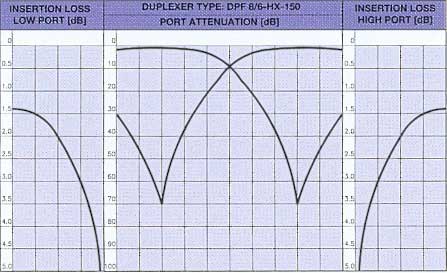

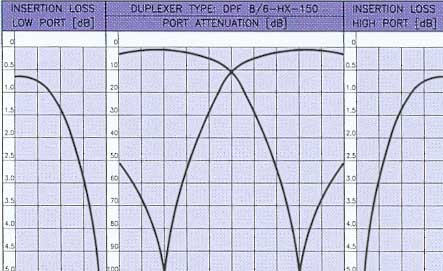

| Typical Insertion Loss |
@ 600 KHz
sapcing : 1,5dB
@ 750 KHz spacing : 1,2dB @1,5 MHz spacing : 1.0dB |
| TX Noise suppression |
@ 600 KHz
spacing : 75 dB
@ 750 KHz spacing : 80 dB @1,5 MHz spacing : 100 dB |
| Impedance |
Nom. 50
Ohms
|
| SWR |
<1,5
|
| Temp. Range |
-30°c
/ +60°c
|
| Freq. Stability |
Approx.
8ppm/°c
|
| Connectors |
N- female
|
| Dimensions (L x W x H) |
295 x 250
x 50mm
|
| Weight |
Approx.
2,5 kg
|
